How to Manage Wall Drainage: The Definitive Professional Guide

The management of moisture within structural assemblies is arguably the most critical factor in determining the longevity of the built environment. Water, in its various states, is the primary agent of deterioration for masonry, timber, and reinforced concrete. How to Manage Wall Drainage. When moisture becomes trapped within a wall system—whether through hydrostatic pressure from the soil, wind-driven rain on the facade, or internal condensation—it initiates a series of destructive processes including efflorescence, mold colonization, freeze-thaw spalling, and the oxidation of structural steel.

Solving the problem of unwanted moisture requires a transition from “waterproofing” as a concept of total blockage to “water management” as a concept of controlled diversion.

This editorial exploration examines the mechanics of fluid dynamics within vertical structures. It moves beyond the superficial application of sealants to address the systemic engineering of drainage planes, hydrostatic relief, and capillary breaks. By understanding the physics of how water moves through porous media and along structural interfaces, professionals can design assemblies that are not merely resistant to water, but are actively self-draining.

Understanding “how to manage wall drainage”

To effectively address how to manage wall drainage, one must first acknowledge the multidimensional nature of the challenge. Drainage is not a singular component; it is a systemic response to environmental stressors. A common misunderstanding in the construction industry is the reliance on “barrier” strategies—the idea that a thick enough coat of tar or a high-performance wrap can permanently exclude water. However, materials degrade, buildings settle, and seals eventually rupture.

The risk of oversimplification lies in ignoring the difference between bulk water management and vapor management. A plan may successfully shed heavy rain but fail because it traps interstitial condensation, leading to dry rot within the wall cavity. Therefore, understanding the “how” involves a dual approach: providing a clear path for liquid water to exit via gravity and ensuring the permeability of materials allows for diffusive drying.

From a structural perspective, management is about pressure equalization. From a horticultural perspective—in the case of living walls—it is about preventing anaerobic saturation. From a geotechnical perspective, it is about relieving the lateral earth pressure that water exerts against foundation walls. The “best” management strategy is one that recognizes these overlapping needs and provides a redundant, clear path for water to travel from high-pressure zones to low-pressure exit points.

Deep Contextual Background: Systemic Evolution

The history of wall drainage is a transition from mass-masonry resilience to rainscreen sophistication. In ancient construction, walls were often several feet thick. These “mass walls” functioned by absorbing moisture during wet periods and releasing it through evaporation during dry periods. Drainage management was inherent in the bulk of the material.

The mid-20th century saw the rise of “barrier walls,” which relied entirely on the outer skin to exclude water. This led to the development of the “pressure-equalized rainscreen” and the “cavity wall.” These systems introduced a vital concept: the drainage plane.

Today, the evolution continues with the integration of “smart” vapor retarders and advanced geocomposite drainage mats. We no longer just hope the water leaves; we engineer specific paths for its departure, utilizing the physics of surface tension and capillary action to our advantage.

Conceptual Frameworks and Mental Models

When planning a drainage strategy, these frameworks help categorize complex environmental data.

1. The 4D Strategy

This is the fundamental mental model for moisture control:

• Deflection: Using overhangs and flashings to keep water off the wall.

• Drainage: Providing a clear path (the drainage plane) for water that gets past the deflection.

• Drying: Ensuring air movement can evaporate remaining moisture.

• Durable Materials: Using components that can survive occasional wetting without losing integrity.

2. The Hydrostatic Relief Model

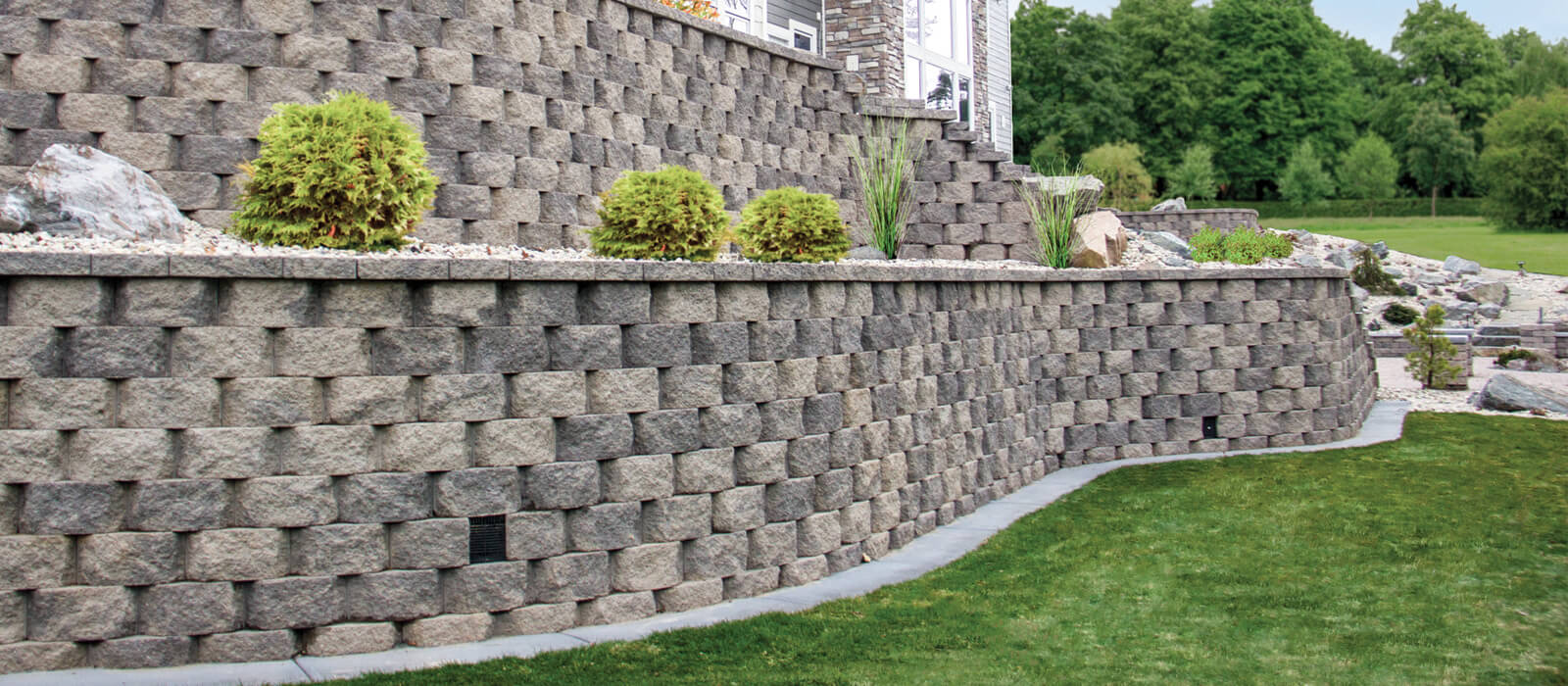

This model focuses on foundation and retaining walls. It treats water not just as a liquid, but as a structural load. The goal here is to replace heavy, saturated soil near the wall with high-porosity aggregates or drainage boards, allowing water to fall straight to the footing drains rather than pressing against the masonry.

3. The Capillary Break Concept

Water can move upward against gravity through tiny pores (capillary action). This framework identifies every interface where two materials touch and introduces a “break”—a gap or a non-porous material—to stop the “wicking” of moisture into sensitive structural zones.

Key Categories or Variations

Different wall types require radically different drainage architectures. Selecting the correct one is the first step in the management process.

1. Rainscreen Systems

A gap is maintained between the cladding and the air barrier.

• Pros: Excellent drying potential; separates aesthetic layer from the functional layer.

• Cons: Increases wall thickness; requires complex detailing at windows and doors.

2. Geocomposite Drainage Mats

Dimpled plastic sheets bonded to a filter fabric, used primarily in foundation or retaining walls.

• Pros: Relieves hydrostatic pressure instantly; protects waterproofing from backfill damage.

• Cons: High material cost; can be crushed if improper backfill is used.

3. Weep Hole and Cavity Systems

Traditional in brick veneer construction; a 1-2 inch air space behind the brick with openings at the bottom.

• Pros: Proven longevity; handles bulk water efficiently.

• Cons: Cavities often get clogged with mortar droppings during construction, rendering them useless.

4. Living Wall Drainage Plenums

Specialized trays or fabric layers that manage both irrigation runoff and transpiration.

• Pros: Essential for plant health; prevents rot in the host wall.

• Cons: Requires constant monitoring; high risk of biological clogging (root intrusion).

Comparison Table: Drainage Efficacy

System Type	Bulk Water Removal	Vapor Drying	Structural Load Relief	Typical Longevity
Rainscreen	Superior	High	N/A	30-50 Years
Drainage Mat	High	Low	Superior	50+ Years
Brick Cavity	Moderate	Moderate	N/A	100+ Years
Living Wall	High (Controlled)	Moderate	N/A	10-15 Years

Detailed Real-World Scenarios How to Manage Wall Drainage

Scenario A: The Below-Grade Foundation in Clay Soil

• Constraint: Heavy clay retains water, creating massive hydrostatic pressure.

• Management: Installation of a dimpled drainage board over a fluid-applied membrane, leading to a perforated French drain at the footing.

• Failure Mode: Silt infiltration into the drain pipe because no filter fabric was used over the aggregate.

Scenario B: The High-Rise EIFS Facade

• Constraint: Modern synthetic stucco is prone to cracking.

• Management: Switching from a barrier EIFS to a “drainable EIFS” that uses a grooved insulation board to create a vertical drainage path.

• Decision Point: Ensuring the flashing at the base of the wall is not caulked shut, which would trap water inside.

Scenario C: The Vertical Garden on an Interior Office Wall

• Constraint: No room for leaks; high humidity in a confined space.

• Management: A stainless steel collection trough at the base with a dedicated plumbed-in drain line.

• Failure Mode: Biofilm buildup in the drain line causing a slow backup and eventual overflow.

Planning, Cost, and Resource Dynamics

The economics of drainage involve a significant “upfront” investment to prevent catastrophic “downstream” costs.

Cost variability

• Direct Costs: Materials like flashing, house wrap, drainage mats, and perforated piping.

• Indirect Costs: The labor-intensive nature of detailing “corners and penetrations” correctly.

• Opportunity Cost: The loss of interior square footage when utilizing wide rainscreen cavities.

Estimated Investment Table (USD)

Component	Cost per Sq Ft	Impact on Longevity	Risk of Improper Install
Drainage Mat	$1.50 – $3.50	High	Moderate
Rainscreen Furring	$2.00 – $5.00	Superior	High
Through-Wall Flashing	$15.00 – $25.00 (LF)	Critical	Extreme
French Drain System	$25.00 – $50.00 (LF)	High	Moderate

Tools, Strategies, and Support Systems

Executing a successful drainage plan requires specialized tools and a “belt and suspenders” approach to detailing.

1. Stainless Steel Drip Edges: Unlike plastic, these don’t degrade under UV and provide a crisp “kick-out” for water.

2. Filter Fabrics (Geotextiles): Essential for keeping soil fines out of drainage aggregates and pipes.

3. Hydrostatic Pressure Relief Valves: Used in specific retaining wall scenarios to prevent wall “blowouts” during extreme floods.

4. Borehole Cameras: For inspecting the internal state of foundation drains without excavation.

5. Moisture Meters and Probes: Used during maintenance to detect “hidden” water behind cladding before it causes rot.

6. Mortar Nets: Inserted into brick cavities to catch droppings and keep weep holes clear.

7. Fluid-Applied Weather Resistive Barriers (WRB): Provides a seamless drainage plane that is more “error-proof” than taped sheets.

8. Kick-out Flashings: A specific diverter at the roof-to-wall intersection, often the most common site of major drainage failure.

Risk Landscape and Failure Modes

Failure in wall drainage is rarely localized; it tends to compound over time.

1. The “Aquarium” Effect

Occurs when a wall is waterproofed on the outside and air-sealed on the inside, but water enters from a top leak. The water is trapped in the middle with no way to dry or drain, literally filling the wall cavity like a tank.

2. Reverse Lapping

When the upper layer of a drainage plane is tucked behind the lower layer rather than over it. Water running down the wall is directed into the structure rather than out.

3. Biological Clogging

In living walls or retaining walls with heavy vegetation, root systems can infiltrate drainage pipes or mats, physically blocking the exit of water.

Governance, Maintenance, and Long-Term Adaptation

A drainage system is a “passive” system that requires “active” oversight.

Layered Maintenance Checklist

• Seasonally: Clear gutters and downspouts; ensure soil hasn’t “heaved” to cover weep holes or siding.

• Annually: Inspect for efflorescence (white salt stains) which indicates water is moving through the masonry rather than around it.

• Post-Storm: Check the termination points of all drains to ensure they are flowing freely and not buried in silt.

Adjustment Triggers

If localized dampness persists more than 48 hours after a rain event, the drainage plane is likely compromised or clogged. This is a “trigger” for invasive inspection before structural rot begins.

Measurement, Tracking, and Evaluation

Evaluation of drainage performance is often binary: it either works or the building is wet. However, technical tracking is possible.

• Leading Indicators: Regular cleaning of gutters; functional “kick-out” flashings; dry moisture probe readings in the sheathing.

• Lagging Indicators: Mold growth; peeling paint on the lower third of a wall; musty odors in the basement.

• Documentation: Keep a “photo log” of the drainage planes before they are covered by cladding. This is the only way to troubleshoot a leak ten years later without tearing the wall apart.

Common Misconceptions and Oversimplifications

1. “Caulk is the answer.” Caulk is a maintenance item with a short lifespan. A good drainage plan works even if the caulk fails.

2. “Waterproofing and drainage are the same.” Waterproofing keeps water out of the material; drainage gives water a path to leave the site. You need both.

3. “Concrete is waterproof.” Concrete is a sponge. It will wick water through capillary action for hundreds of feet unless a break is provided.

4. “Weep holes don’t matter much.” A brick wall without functional weep holes will eventually rot the wood framing behind it through vapor drive.

5. “More slope is always better.” While slope is good, too much slope can lead to erosion at the exit point if not armored with stone or “rip-rap.”

6. “Synthetic wraps are foolproof.” If a wrap is installed with reverse laps or improper taping, it becomes an “ingress plane” rather than a drainage plane.

Ethical and Practical Considerations

In a warming climate with more intense rainfall events, the ethics of “displacing” water must be considered. When you drain your wall, where does the water go? How to manage wall drainage responsibly now includes on-site mitigation, such as rain gardens or bioswales, to handle the water once it leaves the structural envelope.

Synthesis and Final Editorial Judgment

Every attempt to fight water with “stiffness” or “seals” eventually fails. Success belongs to the designer who accepts that water will enter, and provides a clear, unencumbered, and redundant path for its exit.

Whether managing a luxury residential facade, a subterranean parking garage, or a high-tech living wall, the principles remain constant: Deflect what you can, drain what you can’t, and ensure the system has the capacity to dry. A building’s survival depends on the invisible gaps and the humble flashings that ensure water remains a temporary visitor rather than a permanent resident.
